GraphQL enables consumers of an API to ask for the exact data they want from it. This is as opposed to REST, where the API provider dictates what and how data will be served, and it is up to the consumer to make sense of whatever data it receives.

In an app that uses Phoenix for the back end and Elm for the front end, the flow of data via APIs for a query will usually take the form of:

  • Elm requests Phoenix for data via an API call
  • Phoenix provides the requested data via a JSON response
  • Elm decodes the data from the response and displays it

This blog post will cover migrating the APIs of an existing Phoenix/Elm from using REST to using GraphQL, including:

Starting Point

The app that we are going to use as a baseline to migrate from REST to GraphQL is an Address Book app that was originally created by Ricardo García Vega over a series of blog posts (Ricardo’s Github repo).

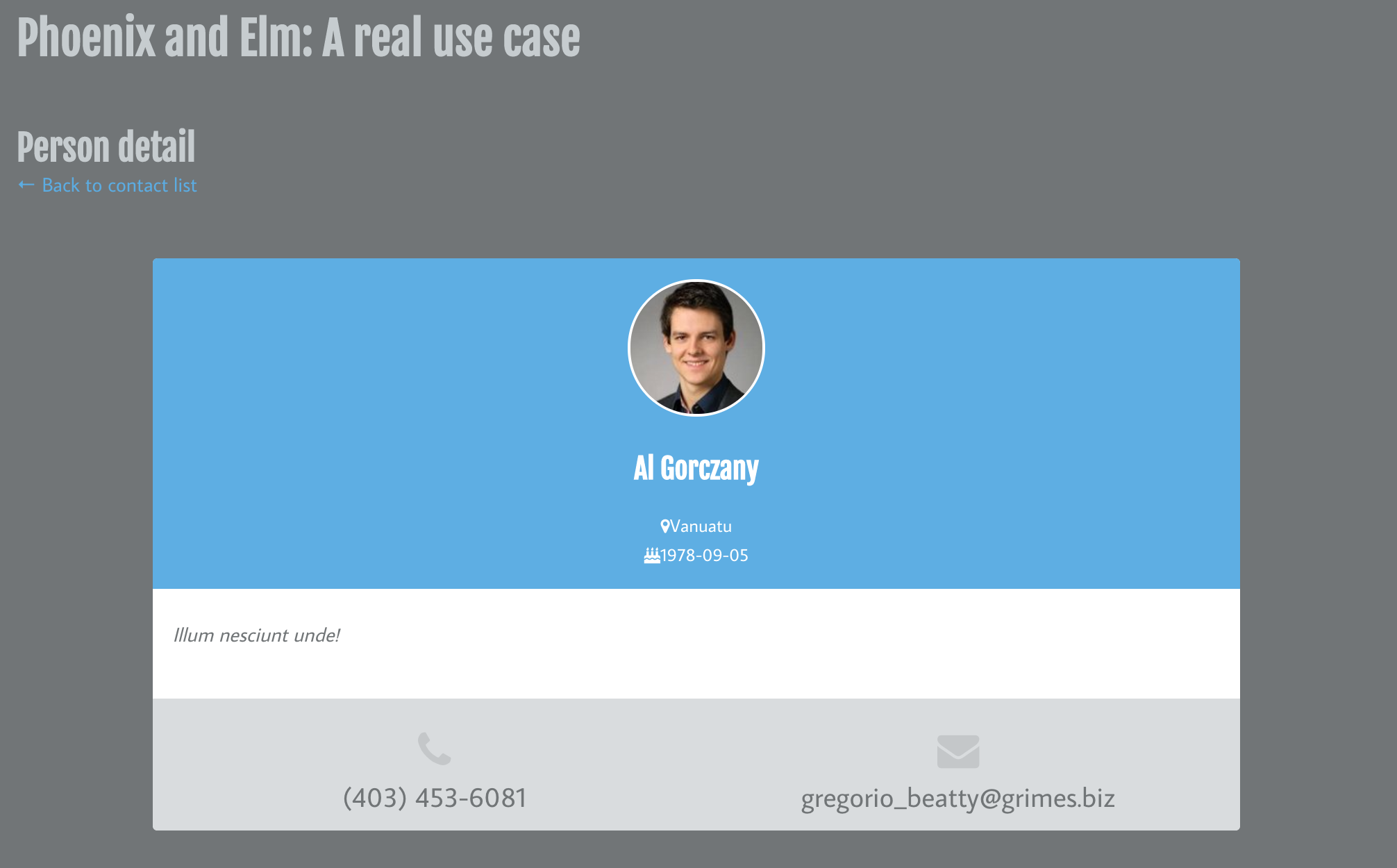

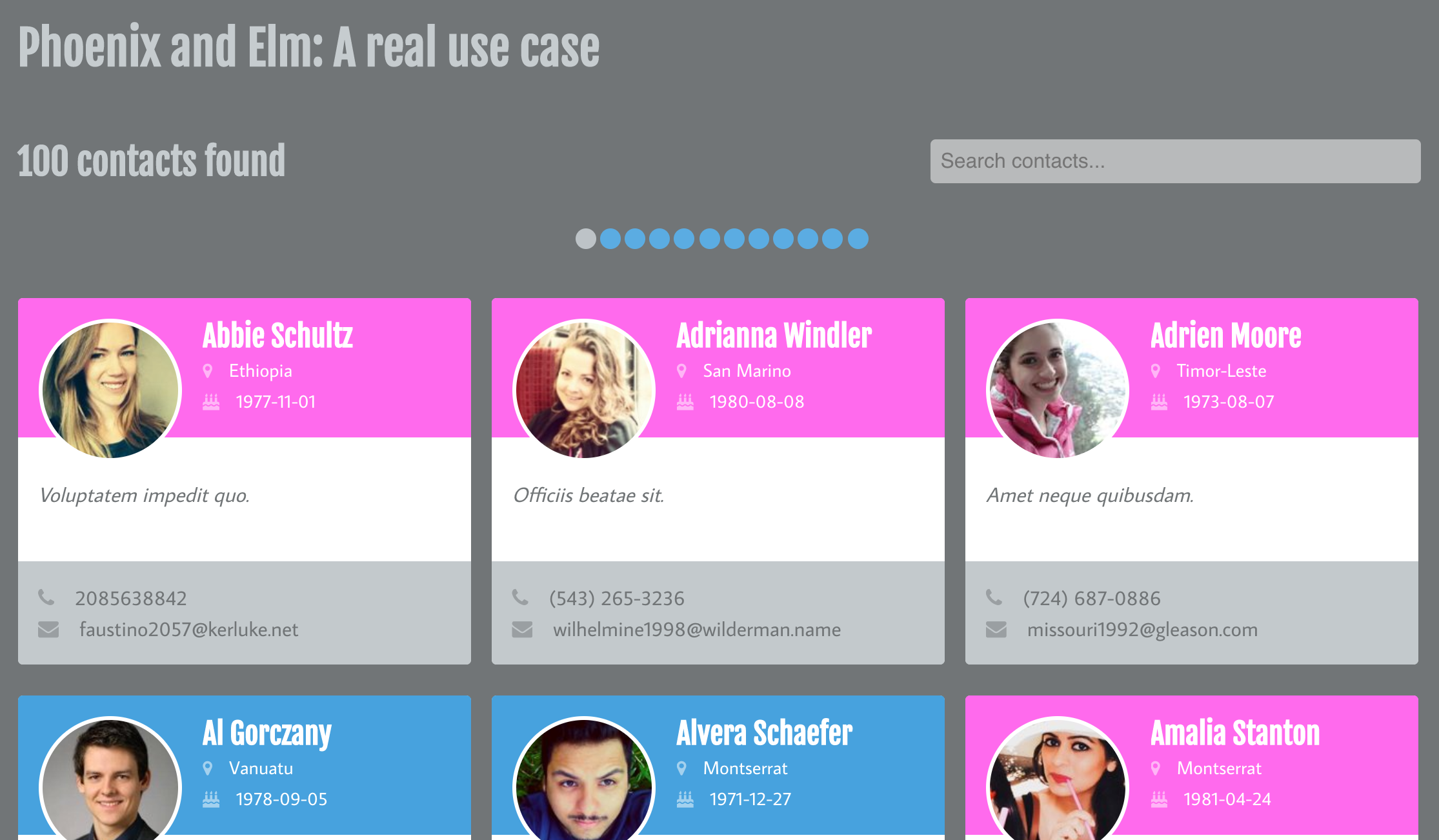

Address Book contacts

I learned a lot from coding up the app while reading those posts, and I thank Ricardo sincerely for putting the time into his write-ups! Afterwards, I upgraded the app to Phoenix 1.3, played around with the codebase, and put my version of it in its own Github repository, so it is this version of the app that we will use. If you are following along at home, please clone my repo and follow the README instructions to get up and running, or you can skip straight to the finished product, which is in the repo’s graphql branch.

Current State of Play

Before jumping into migrating to GraphQL, let’s take a look at some of the application’s current structure and see how communication is done via REST requests.

Back End

First, let’s have a look at the router:

lib/phoenix_and_elm_web/router.ex

defmodule PhoenixAndElmWeb.Router do
  # ...
  scope "/api", PhoenixAndElmWeb do
    pipe_through :api

    scope "/v1", V1 do
      resources "/contacts", ContactController, only: [:index, :show]
    end
  end

  scope "/", PhoenixAndElmWeb do
    pipe_through :browser

    get "/*path", AddressBookController, :index
  end
end

In this app, AddressBook is the Phoenix context behind which Contacts live. So, the AddressBookController’s purpose is solely to render the HTML tag where the Elm app will be embedded:

lib/phoenix_and_elm_web/templates/address_book/index.html.eex

<div id="elm-main"></div>

Once the Elm app is embedded, it can make calls out to the versioned (/v1) contact APIs to fetch contact information, which will be handled by the ContactController:

lib/phoenix_and_elm_web/controllers/v1/contact_controller.ex

defmodule PhoenixAndElmWeb.V1.ContactController do
  use PhoenixAndElmWeb, :controller
  alias PhoenixAndElm.AddressBook

  def index(conn, params) do
    contacts = AddressBook.list_contacts(params)
    json(conn, contacts)
  end

  def show(conn, %{"id" => id}) do
    contact = AddressBook.get_contact!(id)
    json(conn, contact)
  end
end

There are two APIs that Phoenix provides: listing contacts and showing (retrieving) information for a contact. Each function talks only to the AddressBook context, leaving the responsibility of determining how the information requested is provided up to the Address Book “sub-system”: as far as the controller functions are concerned, they provide some parameter to an AddressBook function, and get returned some value which they then serialize into JSON. So, this controller is effectively our REST boundary, and it is these few lines of functionality that will need to be replicated when migrating over to GraphQL.

Front End

The contact API URL (api/v1/contacts), that maps to the ContactController in the Phoenix app, is defined in a common Commands.elm file so that it can be easily shared between the different API calls coming from Elm:

assets/elm/src/Commands.elm

module Commands exposing (contactsApiUrl)


contactsApiUrl : String
contactsApiUrl =
    "/api/v1/contacts"

The two main models in the Elm app are Contact and ContactList, and code related to how to fetch information to fill the records of these models is kept in Commands files under directories named after the model itself.

Contact via REST

Let’s see how information for a single contact is retrieved:

assets/elm/src/Contact/Commands.elm

module Contact.Commands exposing (fetchContact)

import Commands exposing (contactsApiUrl)
import Contact.Decoder as Decoder
import Contact.Messages exposing (ContactMsg(FetchContact))
import Http
import Messages exposing (Msg(ContactMsg))


fetchContact : Int -> Cmd Msg
fetchContact id =
    let
        apiUrl =
            contactsApiUrl ++ "/" ++ toString id
    in
        Decoder.decoder
            |> Http.get apiUrl
            |> Http.send FetchContact
            |> Cmd.map ContactMsg

When Contact.Commands.fetchContact is called within the Elm app, a Cmd is sent to the Elm Runtime, with a Msg type of ContactMsg FetchContact, telling it to send a request to the apiUrl (looking something like api/v1/contacts/5), and decode the response using Contact.Decoder.

The decoder used for a Contact looks like the following:

assets/elm/src/Contact/Decoder.elm

module Contact.Decoder exposing (decoder)

import Contact.Model exposing (Contact)
import Json.Decode as Decode exposing (field, int, string)
import Json.Decode.Extra exposing ((|:))


decoder : Decode.Decoder Contact
decoder =
    Decode.succeed
        Contact
        |: (field "id" int)
        |: (field "first_name" string)
        |: (field "last_name" string)
        |: (field "gender" int)
        |: (field "birth_date" string)
        |: (field "location" string)
        |: (field "phone_number" string)
        |: (field "email" string)
        |: (field "headline" string)
        |: (field "picture" string)

The ContactMsg FetchContact message gets handled in Contact.Update, which updates the Contact model record:

assets/elm/src/Contact/Update.elm

module Contact.Update exposing (update)

import Contact.Messages exposing (ContactMsg(FetchContact))
import Messages exposing (Msg)
import Model exposing (Model, RemoteData(Failure, Success))


update : ContactMsg -> Model -> ( Model, Cmd Msg )
update msg model =
    case msg of
        FetchContact (Ok response) ->
            ( { model | contact = Success response }, Cmd.none )

        FetchContact (Err error) ->
            ( { model | contact = Failure "Contact not found" }, Cmd.none )

The use of Cmd.map ContactMsg in Contact.Commands is what enables the FetchContact message to be handled in a “child” update function (in this case Contact.Update is considered a child of Update), which can help reduce the size of the “parent” update function:

module Update exposing (update, urlUpdate)

import Contact.Update
import Messages exposing (Msg(ContactMsg, ContactListMsg, NavigateTo, ...))
import Model exposing (Model, RemoteData(NotRequested, Requesting))
-- ...


update : Msg -> Model -> ( Model, Cmd Msg )
update msg model =
    case msg of
        ContactMsg msg ->
            Contact.Update.update msg model

        ContactListMsg msg ->
            ContactList.Update.update msg model

        UpdateSearchQuery value ->
            ( { model | search = value }, Cmd.none )

        -- ...
-- ...

Here, in the “parent” update function, there are messages that are handled directly, like UpdateSearchQuery, while messages that are wrapped in a ContactMsg message, for example, are delegated straight off to the Contact.Update.update function.

See this blog post about “The Translator Pattern” in Elm for more information about this style of message passing.

Contact List via REST

Now that we know about fetching a single contact to populate a Contact record, what about fetching a list of contacts to populate a ContactList record?

assets/elm/src/ContactList/Commands.elm

module ContactList.Commands exposing (fetchContactList)

import Commands exposing (contactsApiUrl)
import ContactList.Messages exposing (ContactListMsg(FetchContactList))
import ContactList.Decoder as Decoder
import Http
import Messages exposing (Msg(ContactListMsg))


fetchContactList : Int -> String -> Cmd Msg
fetchContactList page search =
    let
        apiUrl =
            contactsApiUrl
                ++ "?search="
                ++ search
                ++ "&page="
                ++ (toString page)
    in
        Decoder.decoder
            |> Http.get apiUrl
            |> Http.send FetchContactList
            |> Cmd.map ContactListMsg

Fetching a list of contacts looks very similar to fetching a single contact from an API callout point of view, except that we are now providing page and search parameters, resulting in an apiUrl that looks something like api/v1/contacts?search=paul&page=2.

Just like with the contact API call, we decode the response, this time using the ContactList.Decoder, and then send a Cmd with a Msg of type ContactListMsg FetchContactList, which will then be handled in the ContactList.Update.update function.

The ContactList.Decoder itself delegates its Contact-decoding logic to Contact.Decoder, defining only fields related to data about a paginated list of records:

assets/elm/src/ContactList/Decoder.elm

module ContactList.Decoder exposing (decoder)

import Contact.Decoder
import ContactList.Model exposing (ContactList)
import Json.Decode as Decode exposing (field, int, list)
import Json.Decode.Extra exposing ((|:))


decoder : Decode.Decoder ContactList
decoder =
    let
        contact =
            Contact.Decoder.decoder
    in
        Decode.succeed
            ContactList
            |: (field "entries" (list contact))
            |: (field "page_number" int)
            |: (field "total_entries" int)
            |: (field "total_pages" int)

The reason that the field for a list of contacts is specifically named "entries" is due to the Phoenix app using Scrivener.Ecto for pagination. Paginated contact lists are provided in a Scrivener.Page struct, that contains the list of items its paginating under an :entries map key.

And I think that about covers the request/response handling code on the front end. So, it looks like we will need to:

  • Change the URL in Commands.elm to reference a different GraphQL endpoint URL
  • Switch out the Http package for a GraphQL client package
  • Remove decoders, and replace with GraphQL request builders

Migrate Back End to GraphQL

Phew, that is a fair bit to take in for what is a tour of only one conceptual part of a toy app, but at least now we have an idea of the API-related parts of the app that are targets for change in both the front and back ends.

So, without further ado, let’s tackle migration of the back end first.

Absinthe

Absinthe is the go-to toolkit for using GraphQL in Elixir, with its authors pretty much writing the book on the subject, hence we will be use it in this project. So, open up mix.exs, and add the following libraries:

mix.exs

defmodule PhoenixAndElm.Mixfile do
  # ...
  defp deps do
    [
      # ...
      {:absinthe, "~> 1.4"},
      {:absinthe_plug, "~> 1.4"}
    ]
  end
end

Note that even though this is a Phoenix app, for this example we will not need the Absinthe.Phoenix package since we will be sending messages via HTTP, and not via Phoenix channels/websockets.

Types

Once you have run mix deps.get, create a new lib/phoenix_and_elm_web/schema/ directory and let’s create some GraphQL types to describe the data we want to query:

lib/phoenix_and_elm_web/schema/types.ex

defmodule PhoenixAndElmWeb.Schema.Types do
  use Absinthe.Schema.Notation
  import_types(Absinthe.Type.Custom)

  object :contact_list do
    field(:total_entries, :integer)
    field(:total_pages, :integer)
    field(:page_number, :integer)
    field(:page_size, :integer)
    field(:entries, list_of(:contact))
  end

  object :contact do
    field(:id, :integer)
    field(:first_name, :string)
    field(:last_name, :string)
    field(:gender, :integer)
    field(:birth_date, :date)
    field(:location, :string)
    field(:phone_number, :string)
    field(:email, :string)
    field(:headline, :string)
    field(:picture, :string)
  end
end

The :contact object almost directly mirrors the contact database schema, with the one small caveat here being that the GraphQL specification does not provide a :date type for the :birth_date field, so the Absinthe.Type.Custom module provides one that we can use.

The :contact_list object essentially describes a Scrivener.Page, though for simplicity’s sake, we are limiting entries to only containing a list_of(:contact) (Scrivener can, of course, paginate other types of things!).

Schema

Now, we need the schema itself to describe the queries we will allow into the Phoenix app, what arguments each query takes, and what execution should happen for each valid query (done here in the form of resolvers).

lib/phoenix_and_elm_web/schema/schema.ex

defmodule PhoenixAndElmWeb.Schema do
  use Absinthe.Schema
  alias PhoenixAndElmWeb.ContactResolver
  import_types(PhoenixAndElmWeb.Schema.Types)

  query do
    field :contacts, type: :contact_list do
      arg(:search, non_null(:string))
      arg(:page, non_null(:integer))
      resolve(&ContactResolver.list_contacts/3)
    end

    field :contact, type: :contact do
      arg(:id, non_null(:id))
      resolve(&ContactResolver.get_contact/3)
    end
  end
end

Resolvers

Resolvers can tend to get quite long, so it is considered good practice to put them into their own top level directory under the web app, so let’s do that and create a ContactResolver:

lib/phoenix_and_elm_web/resolvers/contact_resolver.ex

defmodule PhoenixAndElmWeb.ContactResolver do
  alias PhoenixAndElm.AddressBook

  def list_contacts(_parent, args, _resolution) do
    contacts = AddressBook.list_contacts(args)
    {:ok, contacts}
  end

  def get_contact(_parent, %{id: id}, _resolution) do
    contact = AddressBook.get_contact!(id)
    {:ok, contact}
  end
end

This resolver looks suspiciously like the original REST ContactController, and this is mainly thanks to having the AddressBook context hide away all of the complexity around preparing contact data sets for delivery to the front end. Handy!

One extra tiny change that needs to happen before we move on: did you notice in the get_contact() function that the map that comes through as the args parameter has atoms for keys, as opposed to the ContactController, where the keys are strings? We’re handling that fine in the get_contact function, but in list_contacts(), we’re passing args straight through to AddressBook.list_contacts(), which is expecting a map with string keys, so we will have to update it to expect one with atom keys:

lib/phoenix_and_elm/address_book/address_book.ex

defmodule PhoenixAndElm.AddressBook do
  # ...
  def list_contacts(%{search: query} = params) do
    # ...
  end
end

This small change is the only time we should have to climb over the AddressBook context wall.

Router

Finally, let’s expose our new GraphQL API to the world by changing the router to send /api requests to the new schema, and /api/graphiql requests to GraphiQL.

lib/phoenix_and_elm_web/router.ex

defmodule PhoenixAndElmWeb.Router do
  # ...
  scope "/api" do
    pipe_through :api

    forward "/graphiql", Absinthe.Plug.GraphiQL,
      schema: PhoenixAndElmWeb.Schema,
      interface: :simple

    forward "/", Absinthe.Plug, schema: PhoenixAndElmWeb.Schema
  end

  scope "/", PhoenixAndElmWeb do
    pipe_through :browser

    get "/*path", AddressBookController, :index
  end
end

Testing with GraphiQL

Speaking of GraphiQL, let’s use it to help us build the queries that we’re going to want to have Elm send to it. Navigating to http://localhost:4000/api/graphiql will bring up the GraphiQL interface, so let’s start with a GraphQL query for a single contact.

We need a query that will take in a contact ID parameter, and will return all the fields that we currently have defined in the Contact.Decoder Elm file:

query($contactID: ID!) {
  contact(id: $contactID) {
    id
    firstName
    lastName
    gender
    birthDate
    location
    phoneNumber
    email
    headline
  }
}

The exclamation mark on ID! means that the field is non-nullable, so you have to provide an ID or the query will error out.

Let’s now input that in GraphiQL and fire it off to the Phoenix app, along with a contactID parameter:

GraphiQL contact query

Looks pretty good to me! Now, how about for a list of contacts?

We need a query that will take in search and page number parameters, and return all the fields that we currently have defined in the ContactList.Decoder Elm file:

query($searchQuery: String!, $pageNumber: Int!) {
  contacts(search: $searchQuery, page: $pageNumber) {
    entries {
      id
      firstName
      lastName
      gender
      birthDate
      location
      phoneNumber
      email
      headline
    },
    pageNumber,
    totalEntries
    totalPages,
  }
}

And for a search query of "Barn", the results are…

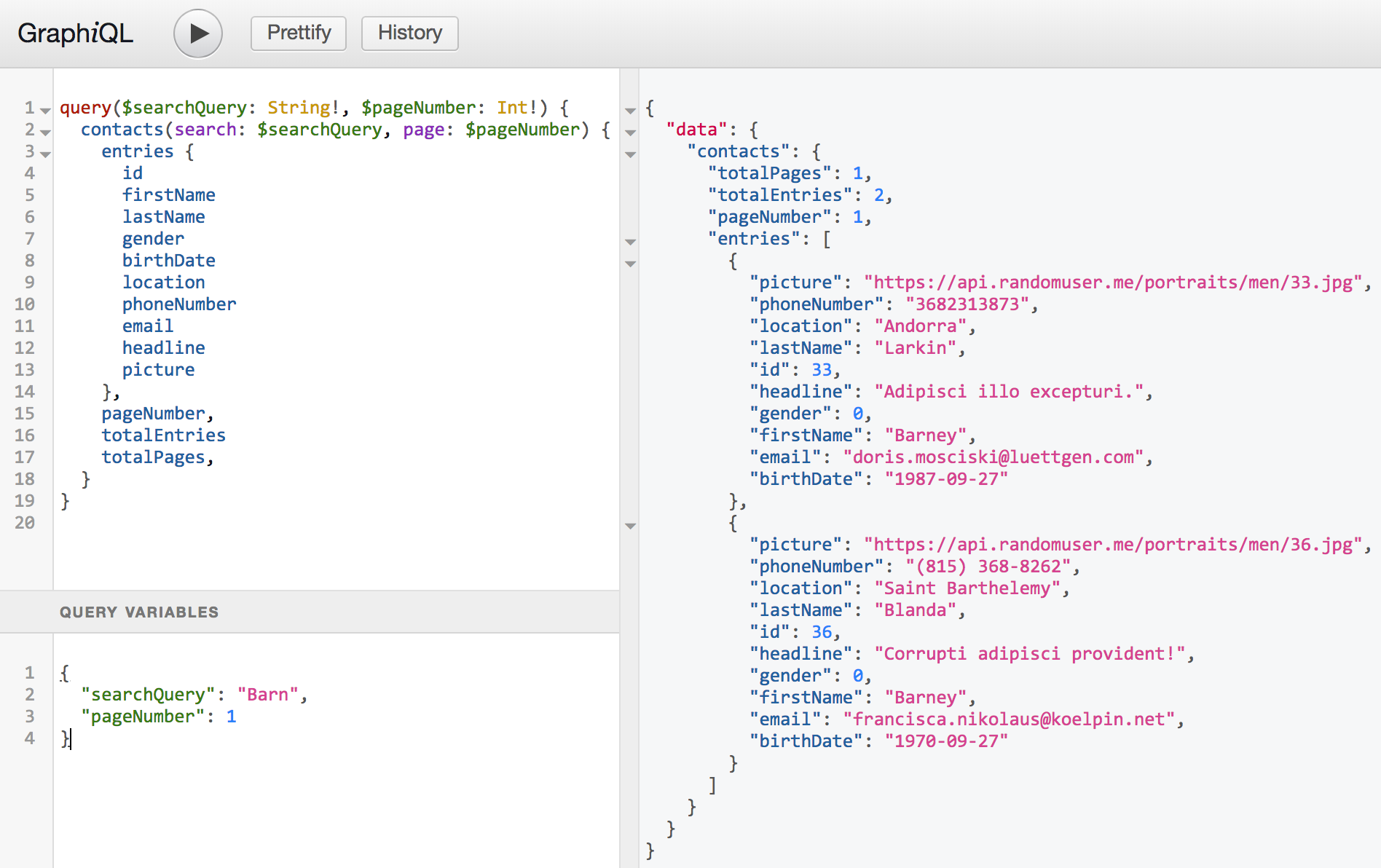

GraphiQL contacts query

…all of the users with a first name of Barney! Great! We now know the GraphQL queries that we want the front end to send to the back end, and now, it’s time to get them translated into Elm code! (At this point, now that the migration from controllers to resolvers is complete, it is safe to delete ContactController from the app.)

Migrate Front End to GraphQL

Before we start, we will need a GraphQL package for Elm, and for this project, we will use elm-graphql. Let’s install it directly in the Elm app:

cd assets/elm
elm-package install jamesmacaulay/elm-graphql

Now, since the Phoenix-side API URL has changed, the first thing we need to do is make our easiest edit, and tell Elm the new location to send requests to:

assets/elm/src/Commands.elm

module Commands exposing (apiUrl)


apiUrl : String
apiUrl =
    "/api"

Contact via GraphQL

Now, let’s begin the process of getting the display of a single contact working again, starting with changing Contact.Commands to use GraphQL when sending requests:

assets/elm/src/Contact/Commands.elm

module Contact.Commands exposing (fetchContact)

import Commands exposing (apiUrl)
import Contact.Messages exposing (ContactMsg(FetchContact))
import Contact.Request as Request
import GraphQL.Client.Http as Http
import Messages exposing (Msg(ContactMsg))
import Task exposing (Task)


fetchContact : Int -> Cmd Msg
fetchContact id =
    id
        |> Request.fetchContact
        |> Http.sendQuery apiUrl
        |> Task.attempt FetchContact
        |> Cmd.map ContactMsg

Once we’ve built the GraphQL request to fetch a contact (whose Contact.Request module we will create next), we:

  • use GraphQL.Client.Http.sendQuery to create a Task to send the query off to the apiUrl
  • ask the Elm runtime to attempt to run that Task
  • send a Msg of type ContactMsg FetchContact, which gets handled just like before in Contact.Update (no changes needed to that file)

Now, let’s create that Contact.Request module to replace the Contact.Decoder. Unlike in GraphiQL, we cannot use raw GraphQL queries in Elm-land, so we will have to port the content of the query to Elm (but let’s keep the GraphQL query that we want generated as a comment, just so we can keep our bearings):

assets/elm/src/Contact/Request.elm

module Contact.Request exposing (fetchContact, contactSpec)

import Contact.Model exposing (Contact)
import GraphQL.Request.Builder as Builder
    exposing
        ( Document
        , NonNull
        , ObjectType
        , Query
        , Request
        , ValueSpec
        , field
        , int
        , object
        , string
        , with
        )
import GraphQL.Request.Builder.Arg as Arg
import GraphQL.Request.Builder.Variable as Var


{-|
query($contactID: ID!) {
  contact(id: $contactID) {
    id
    firstName
    lastName
    gender
    birthDate
    location
    phoneNumber
    email
    headline
  }
}
-}
fetchContact : Int -> Request Query Contact
fetchContact id =
    let
        contactID =
            Arg.variable (Var.required "contactID" .contactID Var.int)

        contactField =
            Builder.extract
                (field
                    "contact"
                    [ ( "id", contactID ) ]
                    contactSpec
                )

        params =
            { contactID = id }
    in
        contactField
            |> Builder.queryDocument
            |> Builder.request params


contactSpec : ValueSpec NonNull ObjectType Contact vars
contactSpec =
    Contact
        |> object
        |> with (field "id" [] int)
        |> with (field "firstName" [] string)
        |> with (field "lastName" [] string)
        |> with (field "gender" [] int)
        |> with (field "birthDate" [] string)
        |> with (field "location" [] string)
        |> with (field "phoneNumber" [] string)
        |> with (field "email" [] string)
        |> with (field "headline" [] string)
        |> with (field "picture" [] string)

The content of the contactSpec function pretty much lines up logically with the code that we have in Contact.Decoder, while fetchContact:

  • builds the query step by step with the let expressions
  • creates a GraphQL.Request.Builder.Document for the query
  • creates a GraphQL.Request.Builder.Request from the Document that gets sent to the apiUrl in Contact.Commands

One final small change is to make sure that the Contact.Messages file, which has been referencing the Http library, now needs to reference GraphQL.Client.Http instead:

assets/elm/src/Contact/Messages.elm

module Contact.Messages exposing (ContactMsg(..))

import Contact.Model exposing (Contact)
import GraphQL.Client.Http as Http


type ContactMsg
    = FetchContact (Result Http.Error Contact)

At this point, individual contact detail pages should be displaying, so navigate to the URL of a known contact (eg http://localhost:4000/contacts/4), and you should see a page that looks something like:

Address Book contact

The sample data in the app is generated randomly, so the contact you see from the URL above will most likely be different, but, it works! Performing a search, or navigating to the root page of the app, or doing anything that results in displaying a list of contacts will not work just yet, though, so let’s polish that task off and finish up this migration.

Contact List via GraphQL

This process will look (and be) very similar to how we migrated the contacts, so let’s briskly get through how the files will change:

assets/elm/src/ContactList/Commands.elm

module ContactList.Commands exposing (fetchContactList)

import Commands exposing (apiUrl)
import ContactList.Messages exposing (ContactListMsg(FetchContactList))
import ContactList.Request as Request
import GraphQL.Client.Http as Http
import Messages exposing (Msg(ContactListMsg))
import Task exposing (Task)


fetchContactList : Int -> String -> Cmd Msg
fetchContactList pageNumber search =
    search
        |> Request.fetchContactList pageNumber
        |> Http.sendQuery apiUrl
        |> Task.attempt FetchContactList
        |> Cmd.map ContactListMsg

assets/elm/src/ContactList/Messages.elm

module ContactList.Messages exposing (ContactListMsg(..))

import ContactList.Model exposing (ContactList)
import GraphQL.Client.Http as Http


type ContactListMsg
    = FetchContactList (Result Http.Error ContactList)
    | Paginate Int
    | ResetSearch
    | SearchContacts

assets/elm/src/ContactList/Request.elm

module ContactList.Request exposing (fetchContactList)

import Contact.Request
import ContactList.Model exposing (ContactList)
import GraphQL.Request.Builder as Builder
    exposing
        ( NonNull
        , ObjectType
        , Query
        , Request
        , ValueSpec
        , field
        , int
        , list
        , object
        , with
        )
import GraphQL.Request.Builder.Arg as Arg
import GraphQL.Request.Builder.Variable as Var


{-|
query($searchQuery: String!, $pageNumber: Int!) {
  contacts(search: $searchQuery, page: $pageNumber) {
    entries {
      id
      firstName
      lastName
      gender
      birthDate
      location
      phoneNumber
      email
      headline
    },
    pageNumber,
    totalEntries,
    totalPages
  }
}
-}
fetchContactList : Int -> String -> Request Query ContactList
fetchContactList page search =
    let
        searchQuery =
            Arg.variable (Var.required "searchQuery" .searchQuery Var.string)

        pageNumber =
            Arg.variable (Var.required "pageNumber" .pageNumber Var.int)

        contactsField =
            Builder.extract
                (field
                    "contacts"
                    [ ( "search", searchQuery ), ( "page", pageNumber ) ]
                    contactListSpec
                )

        params =
            { searchQuery = search
            , pageNumber = page
            }
    in
        contactsField
            |> Builder.queryDocument
            |> Builder.request params


contactListSpec : ValueSpec NonNull ObjectType ContactList vars
contactListSpec =
    let
        contact =
            Contact.Request.contactSpec
    in
        ContactList
            |> object
            |> with (field "entries" [] (list contact))
            |> with (field "pageNumber" [] int)
            |> with (field "totalEntries" [] int)
            |> with (field "totalPages" [] int)

Pretty similar set of changes, right? The only real differences are the number of parameters for the query, and the contactSpec nesting inside contactListSpec, which is in a similar vein to the nesting of the Contact.Decoder inside a ContactList.Decoder.

Now, you should be able to view any page in the app that displays a list of contacts. The GraphQL migration is complete, and you can safely remove the Decoder files from the application.

Any issues getting things to work? Have a look at the graphql branch and see if there are any differences from your code.

Wrapping Up

There is so much more to GraphQL than what I’ve managed to fit into this admittedly long blog post. We only dealt with queries, and did not even touch other GraphQL fundamentals like mutations, which cover modifying server-side data (though take a look at the Elm hipster stack repo for some good examples of that).

However, I hope that you enjoyed this small taste of Phoenix, Elm, and GraphQL working together, and if you join me in making further inroads with this fully functional tech stack moving forward, I would love to hear about it!

Leave a comment

You may also enjoy

Shake map showing distribution of maximum JMA Seismic Intensities by-prefecture for the 11 March 2011

3.11

7 minute read

Reflections on living through Japan’s biggest recorded earthquake.

Doc Brown from the movie Back to the Future connecting a plug and socket

Creating Plover Plugins with Python

44 minute read

Level up your steno chording with the power of Python! Hook into Plover plugins, and discover a world beyond keystrokes.
